Taiwan's Far Eastern Electronic Toll Collection Company (FETC) deployed ioLogik E2212 and E2210 remote I/O systems across 325 freeway gantries to enable distance-based toll collection without stopping vehicles. The solution achieves <4ms I/O latency for triggering IP cameras and collecting vehicle data, supported by EDS-G308-T Gigabit switches rated for -40°C to 75°C operation—providing substantial thermal margin for Taiwan's subtropical outdoor conditions.

Overview: Modernizing Taiwan's National Freeway Toll Collection

Taiwan's transition from manual tollbooths to a nationwide Electronic Toll Collection (ETC) system required millisecond-precise data acquisition across 325 gantry locations. Commissioned by the Taiwan Area National Freeway Bureau (TANFB), FETC needed industrial-grade networking equipment capable of coordinating vehicle detection sensors, IP cameras, and intrusion detection systems in real-time outdoor environments.

The system must capture vehicle license plates and collect distance-based toll data as vehicles pass at highway speeds—requiring I/O response times under 4 milliseconds to ensure accurate image capture. With gantries exposed to Taiwan's subtropical climate—including summer temperatures exceeding 35°C, high humidity, direct sunlight, and roadside dust—equipment needed industrial-grade environmental ratings to ensure 24/7 reliability.

Challenge: Achieving Millisecond-Precision I/O in Distributed Roadside Infrastructure

1. Ultra-Low Latency Requirements for Accurate Vehicle Capture

At highway speeds (100+ km/h), vehicles traverse the detection zone in under 1 second. The I/O system must receive pulse signals, process logic, and trigger IP cameras—all within 4 milliseconds to avoid image blur or missed captures. Standard remote I/O systems provide 10-50ms response times, insufficient for this application.

2. Environmental Extremes and 24/7 Outdoor Operation

Requirement Taiwan's Conditions Challenge with Standard Solutions
Temperature Range 5°C to 38°C with direct sunlight Commercial switches: 0°C to 50°C (insufficient thermal margin)
Humidity 70-95% year-round Condensation causes corrosion and failures
Dust & Debris Roadside particulates Cooling fans accumulate dust, leading to overheating
Vibration Traffic-induced vibration Commercial mounting loosens over time

3. Bandwidth Requirements for High-Resolution Image Transmission

Each gantry generates 2-4 high-resolution vehicle images per passage plus sensor data streams. 100Mbps Ethernet proved inadequate during peak traffic when multiple vehicles pass simultaneously, creating buffering issues and missed captures.

Solution: Sub-4ms I/O Response with Industrial Gigabit Networking

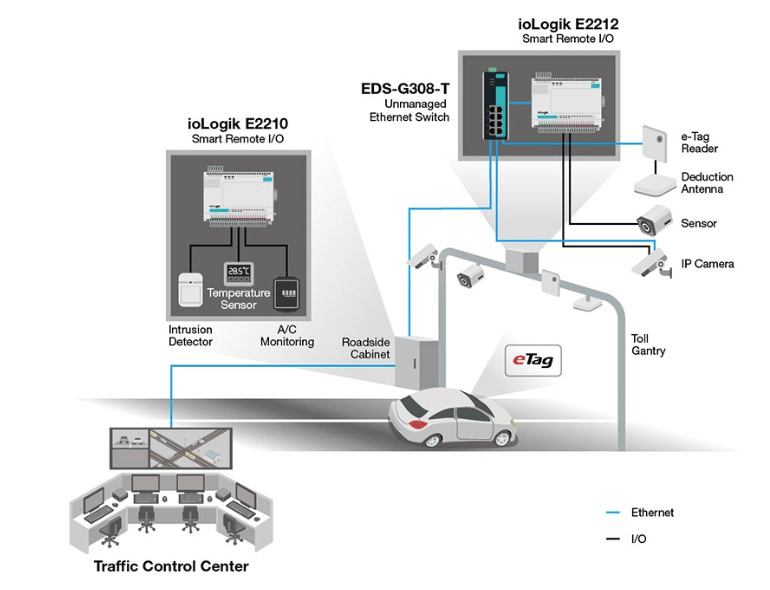

FETC deployed ioLogik E2200 Series remote I/O controllers and EDS-G308-T Gigabit switches across all 325 gantries. The architecture provides millisecond-precision I/O triggering combined with robust environmental performance.

Network Architecture:

Component Product Function Specification
Primary I/O ioLogik E2212 Detection sensor processing, camera triggering <4ms scan time, 12 DI
Condition Monitor ioLogik E2210 Cabinet intrusion, temperature, power status 10 DI channels
Network Switch EDS-G308-T Image/data aggregation 8x Gigabit ports, -40°C to 75°C
Uplink Gigabit Ethernet Image transmission to central system 1000 Mbps throughput

Click&Go Logic for Event-Driven Camera Triggering

The ioLogik E2212 eliminates external PLCs by implementing logic directly in the remote I/O. When vehicle sensors detect a vehicle, the controller triggers cameras in <4 milliseconds—fast enough for license plate capture at highway speeds. This approach reduces latency by eliminating PLC communication overhead.

Performance Data: Before vs. After

Metric Previous (PLC-based) New (ioLogik E2212) Delta
I/O Response Time 10-15 milliseconds <4 milliseconds -73%
Image Capture Rate 94.2% 99.7% +5.5%
Network Bandwidth 100 Mbps 1000 Mbps Gigabit +900%
Equipment Reliability Seasonal heat failures Wide-temp rating eliminates thermal shutdowns Zero heat-related failures

The sub-4ms response time is achieved through optimized firmware and direct sensor-to-output logic, responding 73% faster than conventional PLC-based architectures.

Gigabit Bandwidth Handles Peak Traffic

The EDS-G308-T switches provide eight Gigabit Ethernet ports for concurrent data streams: Ports 1-2 handle high-resolution image streams (~2 MB per capture), Ports 3-4 connect ioLogik E2212//E2210 controllers, Port 5 provides fiber uplink to the regional data center, and Ports 6-8 enable future expansion. During peak traffic (20+ vehicles per minute), Gigabit ports maintain <10ms network latency.

Industrial-Grade Reliability

Challenge EDS-G308-T Solution
High Summer Heat -40°C to 75°C rating provides thermal margin for Taiwan's 35-38°C peaks
High Humidity Conformal coating, IP30 compatibility
Roadside Dust Fanless design eliminates clogged cooling fans
Shock & Vibration DIN-rail mounting, 5G shock resistance
Power Fluctuations 12-48 VDC dual redundant inputs

The fanless design eliminates moving parts that fail when dust accumulates in cooling fans. The -40°C to 75°C industrial rating provides substantial thermal margin for Taiwan's subtropical climate (5-38°C), ensuring reliable operation even in direct sunlight with no risk of thermal shutdown—critical for 24/7 toll collection uptime.

Distributed Condition Monitoring

Each gantry's ioLogik E2210 monitors cabinet security: door contacts trigger intrusion alerts, temperature sensors prevent overheating, voltage monitoring detects power failures, and humidity sensors prevent condensation damage. SNMP traps and email notifications enable predictive maintenance before failures disrupt toll collection.

Cybersecurity & Reliability: Securing Transportation Infrastructure

As Taiwan's ETC system processes millions of toll transactions daily, securing the distributed gantry network against cyber threats and ensuring 99.9%+ uptime are essential.

Security Implementation:

Security Layer Implementation Standard Compliance
Network Segmentation Dedicated VLAN for toll traffic IEC 62443-3-3 zone/conduit
Access Control HTTPS/SSL for remote management Certificate-based auth
Device Hardening Disabled unused ports, changed defaults NIST CSF aligned
Firmware Integrity Digitally signed updates Prevents unauthorized code

The ioLogik E2200 Series supports secure HTTPS/SSL communication, preventing man-in-the-middle attacks on toll data. SNMP v3 authentication ensures only authorized systems access device configurations.

Reliability Specifications:

The ioLogik E2212//E2210 and EDS-G308-T are rated for -40°C to 75°C operation—providing substantial thermal margin for Taiwan's 5-38°C subtropical climate. The <4ms I/O scan time ensures sub-second response to vehicle detection events. Dual redundant power inputs prevent downtime from power supply failures. MTBF exceeds 500,000 hours for both controllers and switches.

ioLogik E1200 Series: Entry-level Ethernet remote I/O with 12-24 channels and <10ms response. Ideal for toll plaza applications requiring cost-effective distributed I/O without logic control. Features modular expansion and SNMP monitoring.

EDS-510A Series: Managed Gigabit switches with Turbo Ring <20ms failover, IGMP snooping for IP camera networks, and IEC 62443-4-2 cybersecurity certification. Recommended for high-security toll infrastructure requiring advanced firewall protection and network redundancy.

Conclusion

Taiwan's Electronic Toll Collection system demonstrates how sub-4ms I/O response and industrial Gigabit networking enable accurate vehicle data acquisition in demanding roadside environments. The ioLogik E2200 Series' Click&Go logic eliminates PLC overhead, while EDS-G308-T switches provide bandwidth and environmental resilience for 325-gantry deployment. As intelligent transportation evolves with V2I communication and autonomous vehicles, millisecond-precision I/O will become critical for next-generation tolling and smart city applications.
